GMP Standard Environmental Friendly Vacuum Drying Chamber

Description of GMP Standard Environmental Friendly Vacuum Drying Chamber

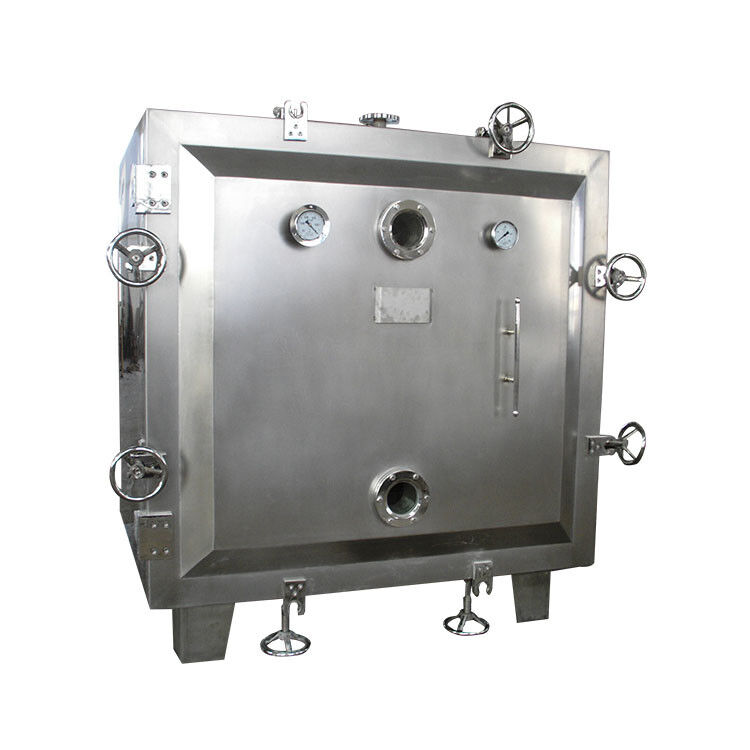

GMP Standard Environmental Friendly Vacuum Drying Chamber is a most often used static chamber dryer under vacuum condition. Inside the drying chamber, trays loaded with wet material are placed on top of each other in a drying shelf.

In drying pocess, heat medium, such as steam, hot water or thermal oil, is connected to the drying shelf which transfers heat to wet material. Under vacuum condition, boiling point of moisture is much lower. So the moisture can be evaporated under low temperature. The vacuum pump constantly sucks out the evaporated moisture to speed the drying process. Vacuum pump, tubular condenser and buffer tank are equipped to recover the evaporated moisture.

Features of GMP Standard Environmental Friendly Vacuum Drying Chamber

1. Drying powder, small granule and slurry materials under vacuum condition, especially for those materials which are heat sensitive, easy oxidized, toxic and the evaporated moisture needs to be recovered;

2. Drying tray: 4-48 trays

3. GMP design

4. Heat source: steam or hot water

Technical Parameters of GMP Standard Environmental Friendly Vacuum Drying Chamber

Picture of GMP Standard Environmental Friendly Vacuum Drying Chamber in Work

After Sell Service

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell

Packing & Delivery
